| Model Specifications | |
|---|---|
| Model | MS.GW.4@WHC |
| System | 48V 5kw AC System |
| Battery | AGM Maintenance Free Battery 8V 150AH × 6pcs |
| Motor | 5kw AC Motor |
| Controller | AC 48V 400A intelligent controller |
| Charger | Computer Intelligent charger (Input: 220V | Output: 48V 25A) |
| Performance | |
|---|---|
| Passenger capacity | 4 |
| Range (loaded) | 80–90 km @ 20 km/h |
| Max. speed | 22–24 km/h |
| Min. turning radius | 4.5 m |
| Max. climbing ability | 20% |
| Brake distance | < 6 m |
| Vehicle weight (with batteries) | 580 kg |
| Dimensions | |
|---|---|
| Overall (L×W×H) | 3880 × 1209 × 1920 mm |
| Min. ground clearance | 100 mm |
| Wheelbase | Front 877 mm / Rear 993 mm |
| Axle distance | 3150 mm |
| Body and Frame | |
|---|---|
| Chassis | Welded high yield strength galvanized tubular steel |
| Body & Roof | Injection molding modeling design separable replacement |
| Seat | Sponge & artificial leather |

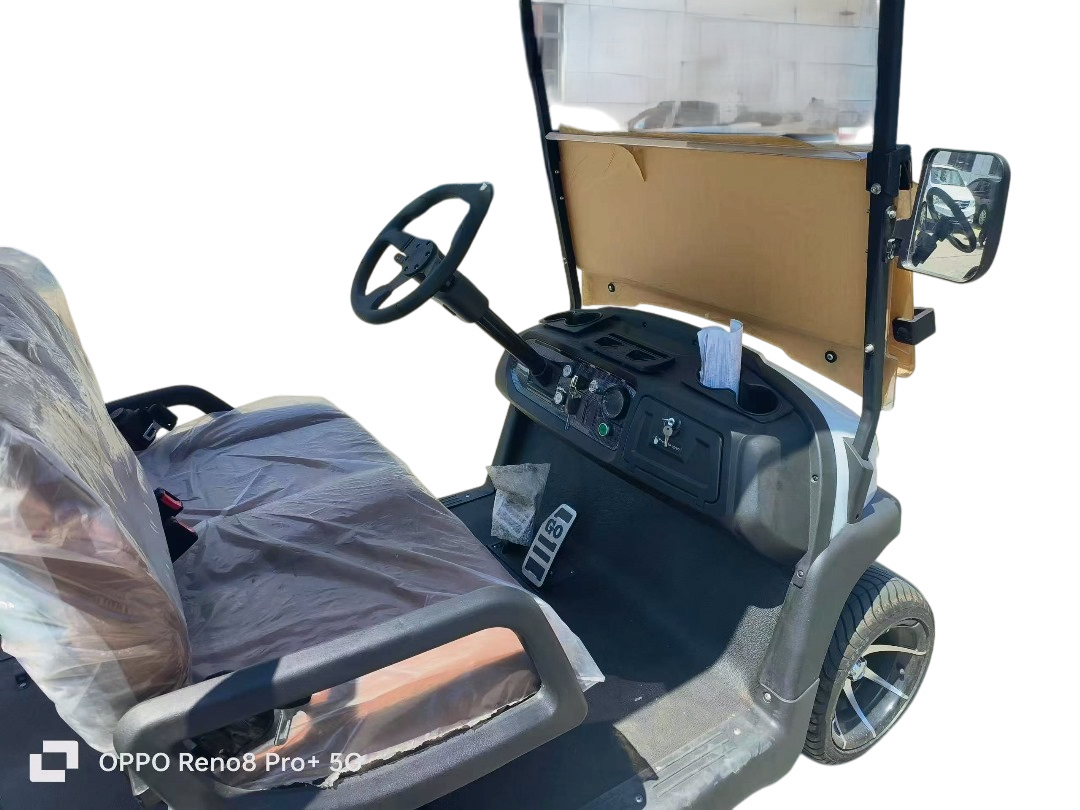

| Dashboard | Plastic molding instrument board, electric key switch, storage box, cup holder, turn signal indicator, forward & reverse indicator |
| Windshield | Tempered glass |
| Steering and Suspension | |
|---|---|
| Steering system | Dual automotive-style struct and self-adjust rack-and-pinion steering |
| Brake system | Dual rear wheel mechanical drum brakes, self-adjusting with non-asbestos linings |
| Accelerator | Electric accelerator |
| Suspension system | Leaf spring + Cylindrical Hydraulic Shock Absorb |
| Wheel & Tyre | Steel wheel with 18×8.5-8” |
